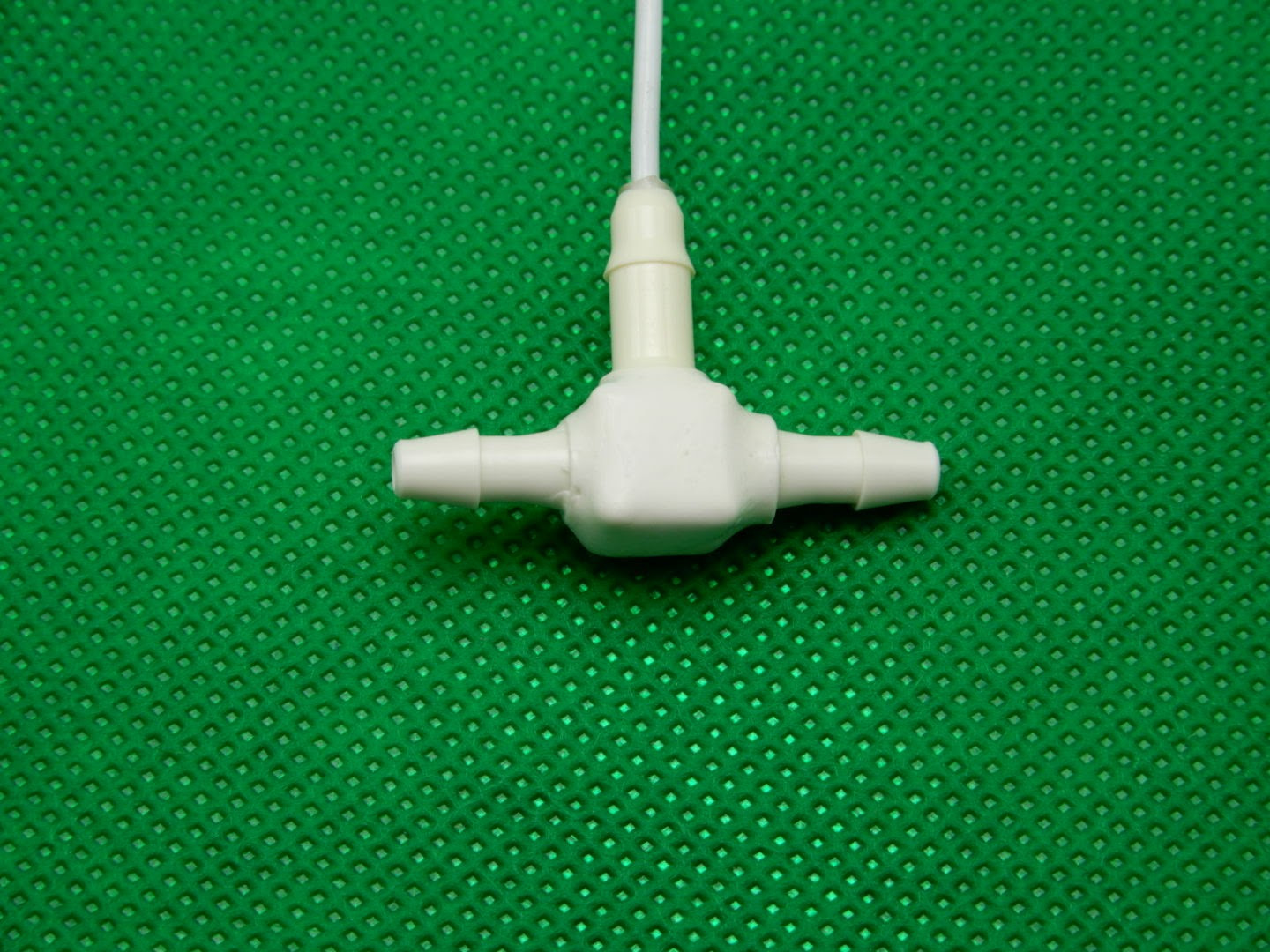

8-900 Flow-thru Conductivity Electrode with 1/8" Fittings

8-900 Flow-thru Conductivity Electrode with 1/8" Fittings

$349.00Price

8-900 Flow-thru Conductivity Electrode with 1/8" Fittings

  • SPECIFICATIONS

    TOTAL LENGTH

    3.2 cm

    LEAD LENGTH

    1 m

    BODY (Outer Diameter)

    10 mm

    TIP (Outer Diameter)

    1/8" flow cell

    RESPONSE TIME:

    5 to 15 seconds

    DEPTH of IMMERSION:

      1/8" flow-thru

    RANGE:

    10 uS - 100 mS

    TEMPERATURE RANGE:

    -5°C to 75° C

    REFERENCE ELECTRODES

    TYPE: Solution & Electrode



    N/A

  • CALIBRATION

    Pumping a known calibration standard (0.01 KCl) will help in determining the K for the electrode

  • CLEANING

    Using any electrode in solutions containing protein requires the electrode be rinsed with an enzyme cleaning solution.



    After each use, we recommend cleaning our electrodes with Terg-a-zyme (Alconox, Inc.) or a chromic/sulfuric acid glass cleaning solution by submerging the electrodes for a couple of minutes in order to remove all protein from the glass and reference junction.



    This will prolong the useful life of the electrodes.

  • STORAGE

    Always clean the microelectrode before storing:



    • Long-term (over 2 weeks): rinse flow path with DI water and dry



    • Short-term: Rince flow path with DI water
